8 – Historic Data and Graphs

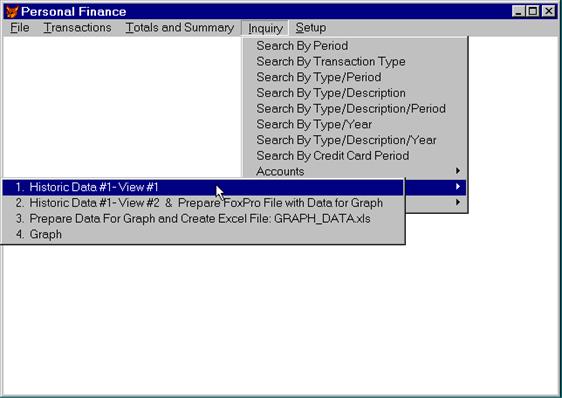

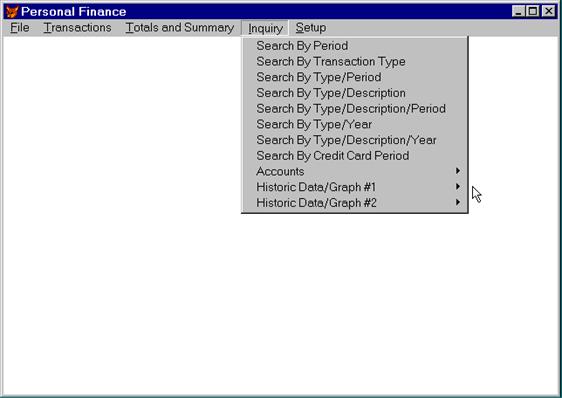

Menu – Historic Data and Graph #1 – View #1

Note:

1.) This menu shows step by step how the graph is created.

2.) Before doing this part, it is recommended to do first the

Monthly Summary – View 1, which it is under the

Totals and Summary menu.

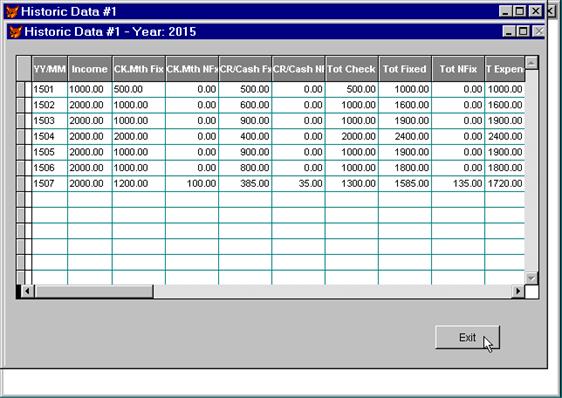

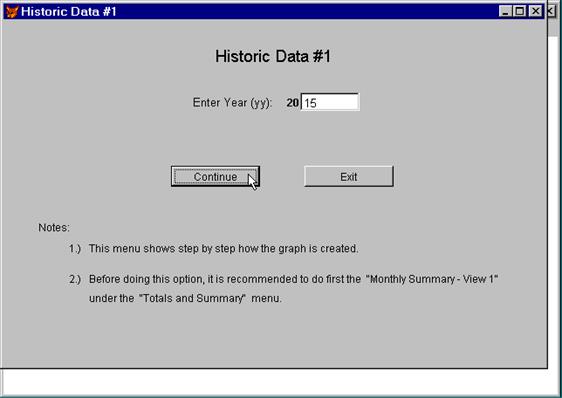

Historic Data #1 – View #1

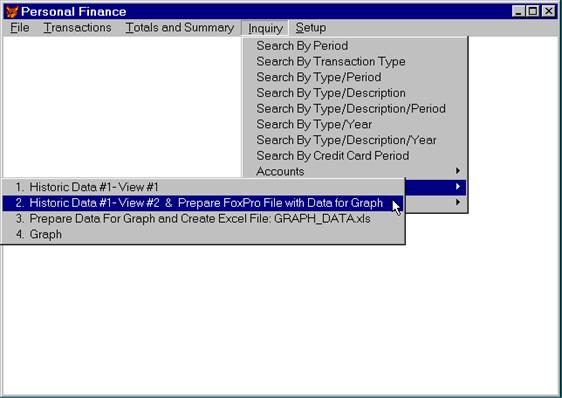

Menu – Historic Data #1 – View #2, and Prepare FoxPro File

with Data for Graph

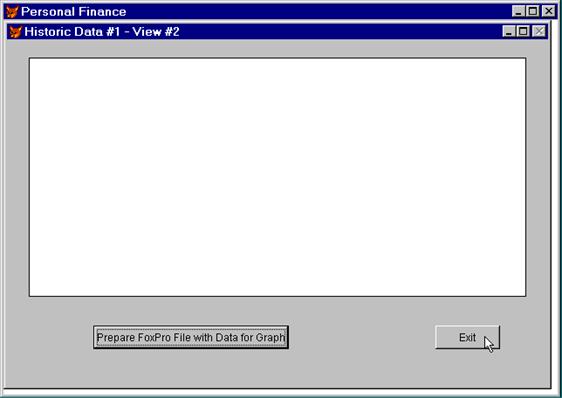

Historic Data #1 – View #2

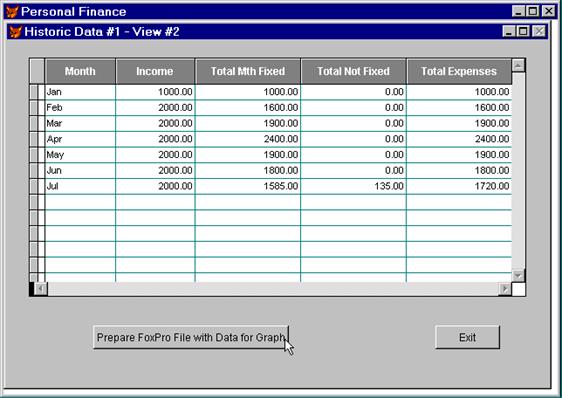

Click on the Prepare FoxPro File with Data for Graph command

button to continue.

Click on the Exit command button.

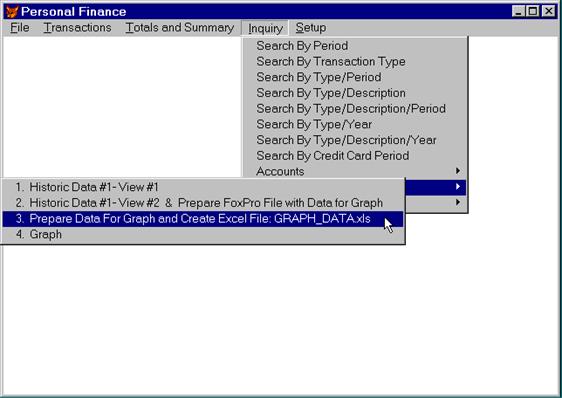

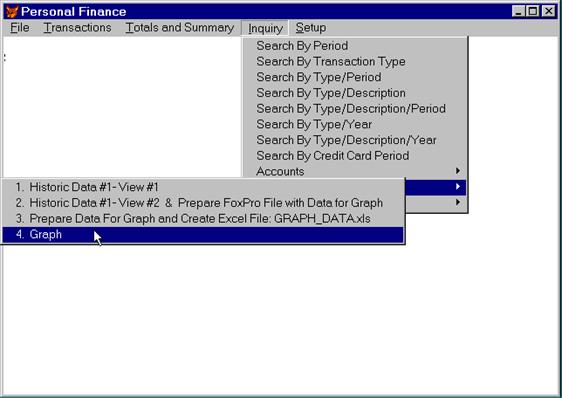

Menu – Prepare Data For Graph and Create Excel File: GRAPH_DATA.xls.

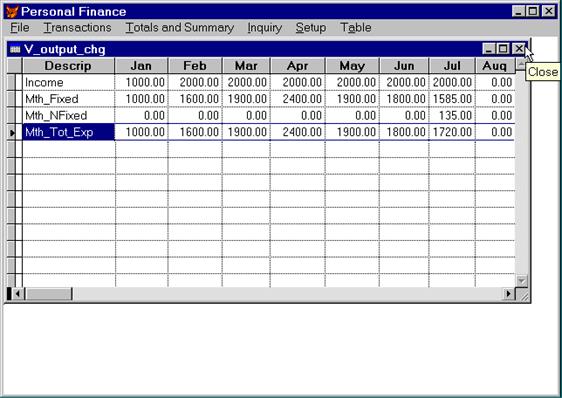

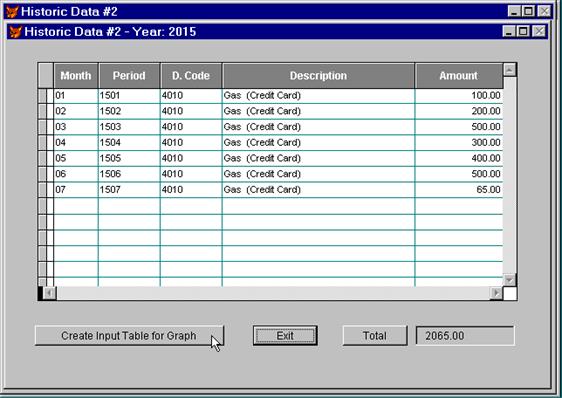

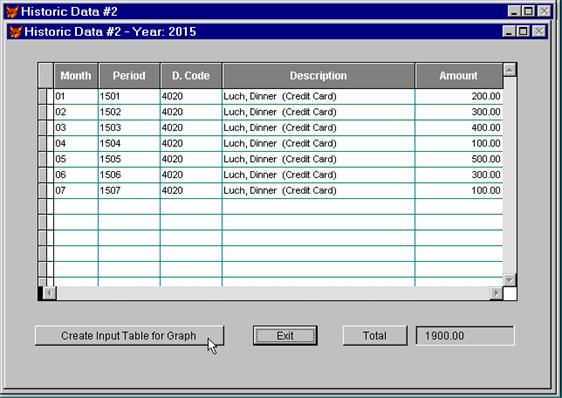

Screen that shows the data for the Visual FoxPro File OUTPUT_TOT.dbf.

View: V_output_chg

Do a click as shown above to close the screen.

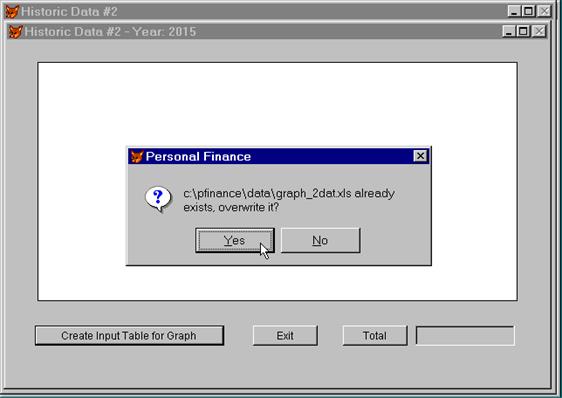

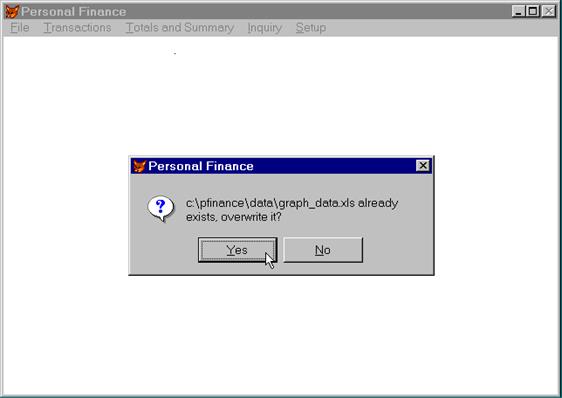

Click on the Yes command button to create a new file.

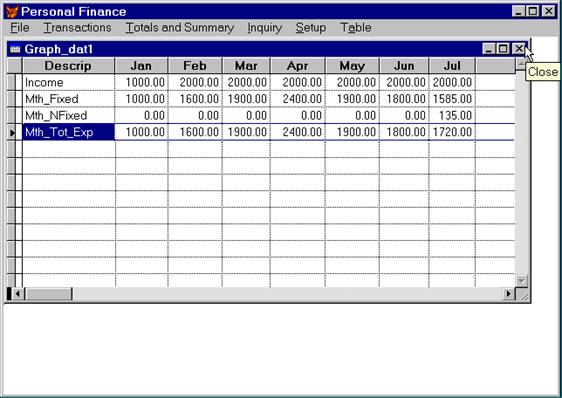

Screen that shows the data for the Microsoft Excel file GRAPH_DAT1.xls

Note: The file does not contain the fields for the months not used.

Do a click on the Yes command button to create a new file.

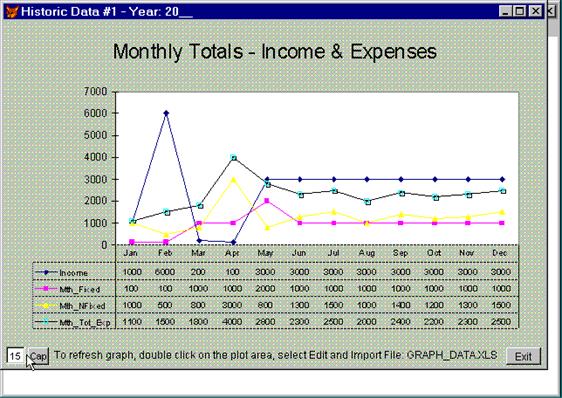

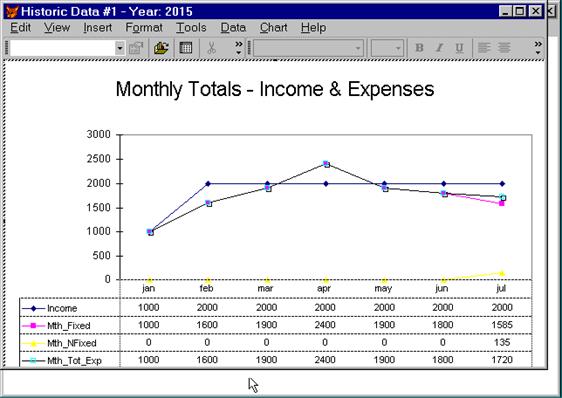

Menu For Historic Data – Graph #1

To edit the form caption, enter the year “YY” in the text box and

click on the Cap (Caption) command button.

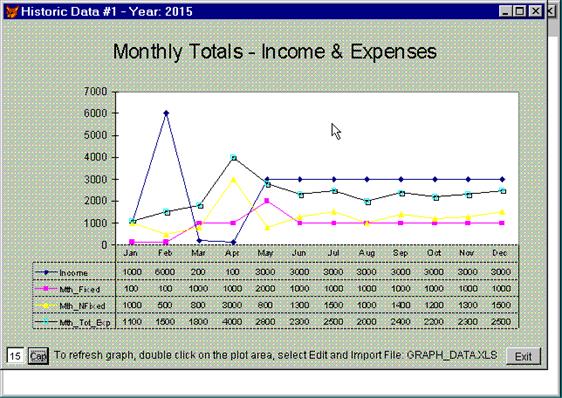

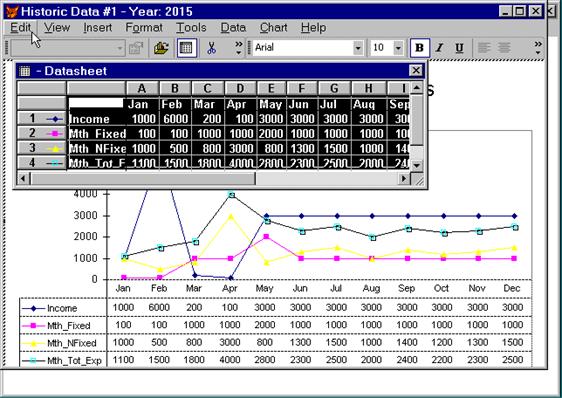

Double click on the graph plot area to edit Microsoft Graph.

Select Edit from the menu bar.

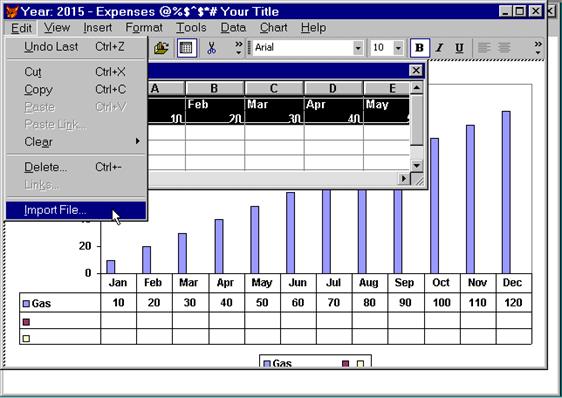

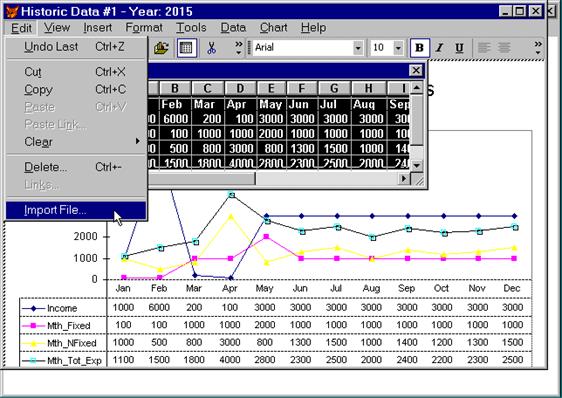

Select Import File from the menu.

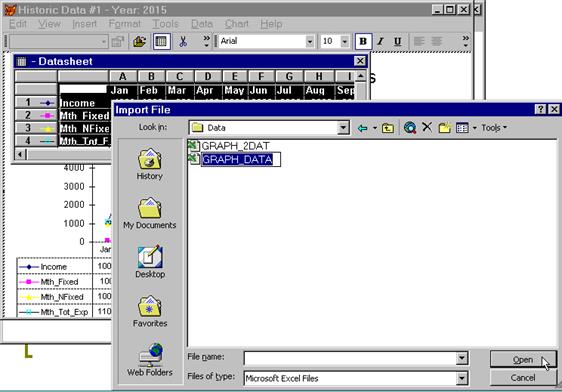

Select the Excel file C:\pfinance\data\GRAPH_DATA.xls

Click on the Open command button.

Click on the OK command button.

Close the Excel window by doing a click as shown below.

Click on the bottom of the form.

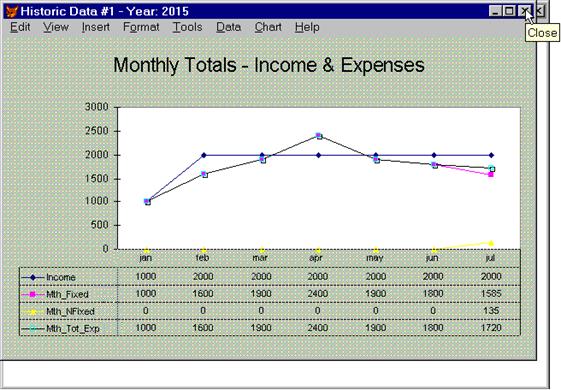

To close the form, do a click as shown below.

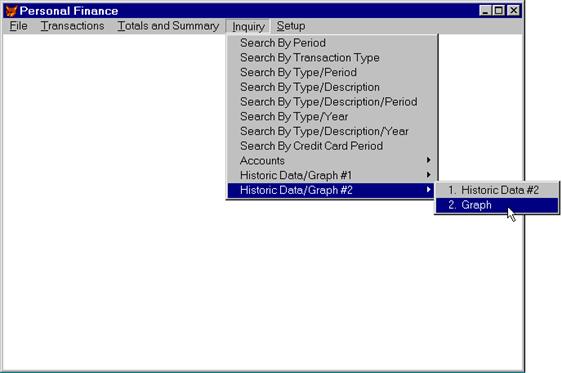

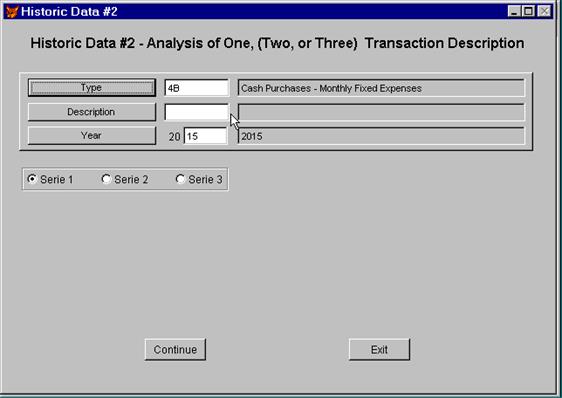

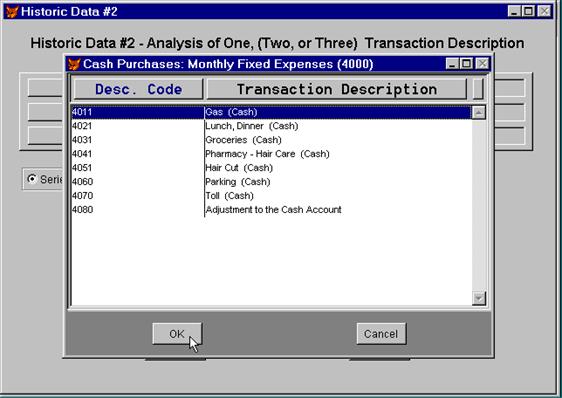

Menu – Historic Data and Graph #2

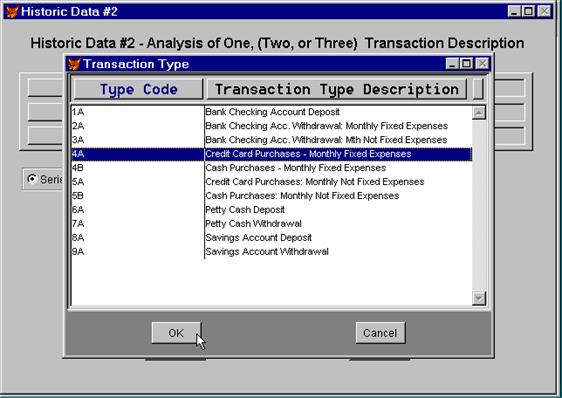

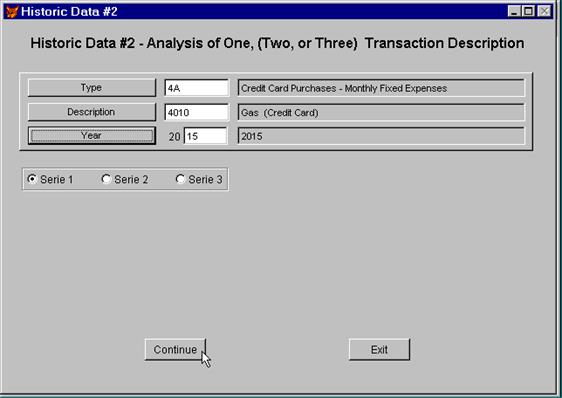

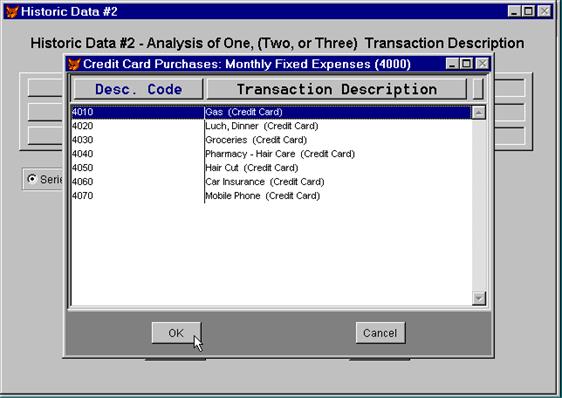

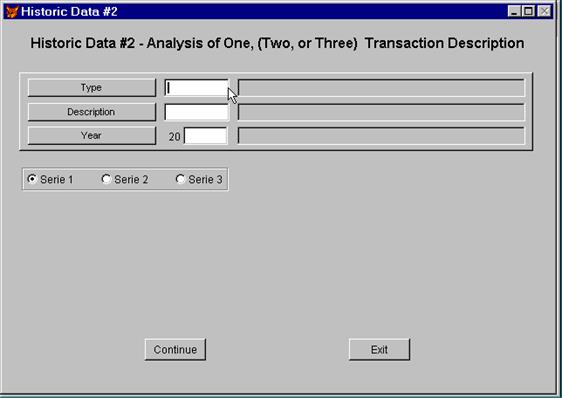

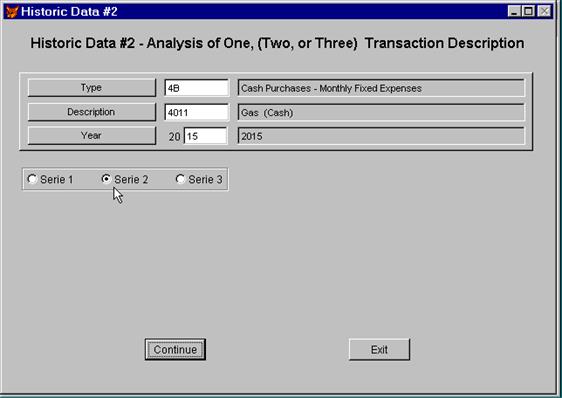

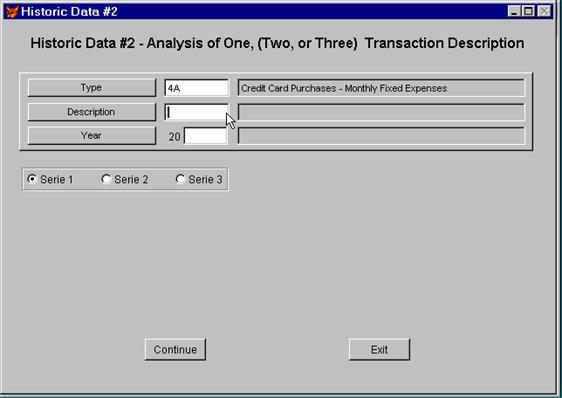

Data for Graph – Series # 1:

.

The next step is the graph or add another series.

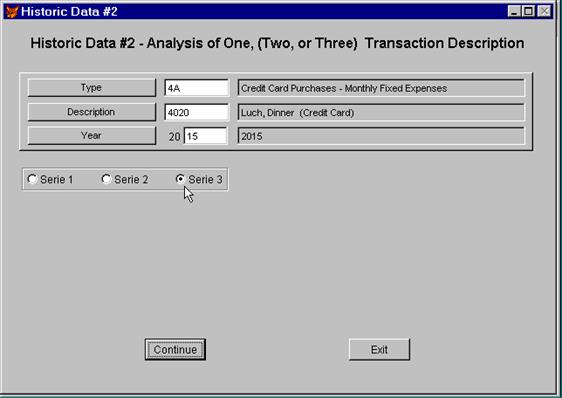

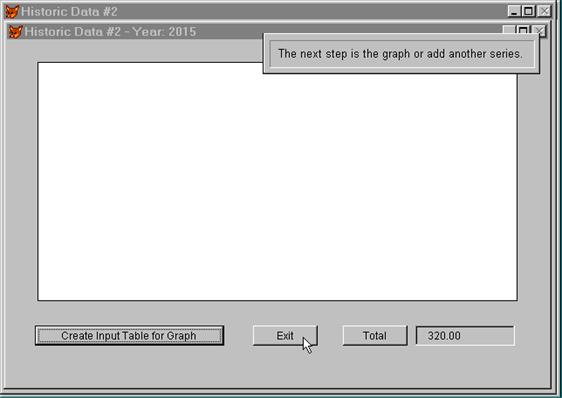

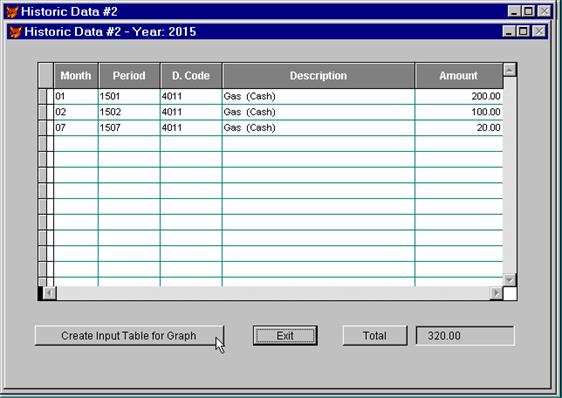

Data for Graph – Series # 2:

The next step is the graph or add another series.

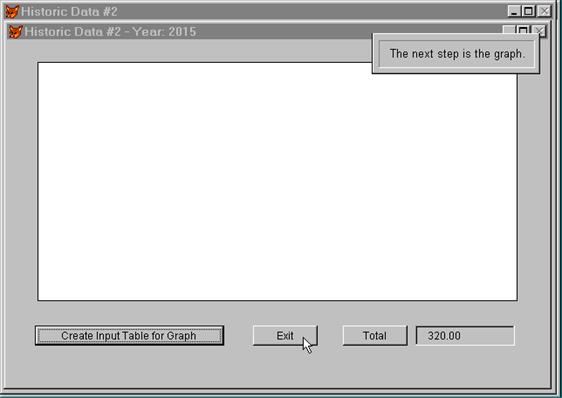

Data for Graph – Series # 3:

The next step is the graph.

Note: Select Graph #1 from the menu to create a Line type graph,

but using the GRAPH_2DAT.xls file to import the data for the

graph instead of GRAPH_DAT.xls.

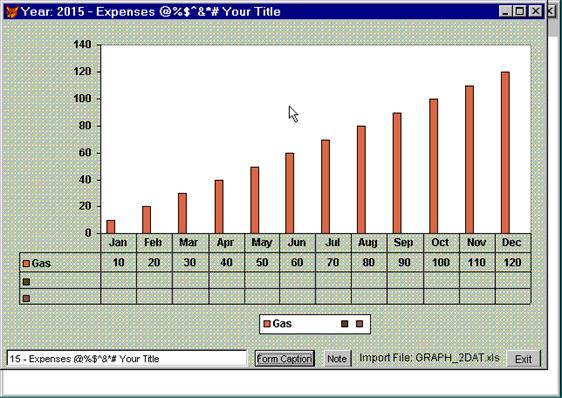

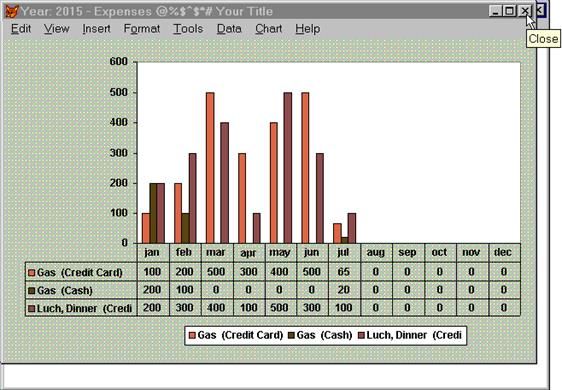

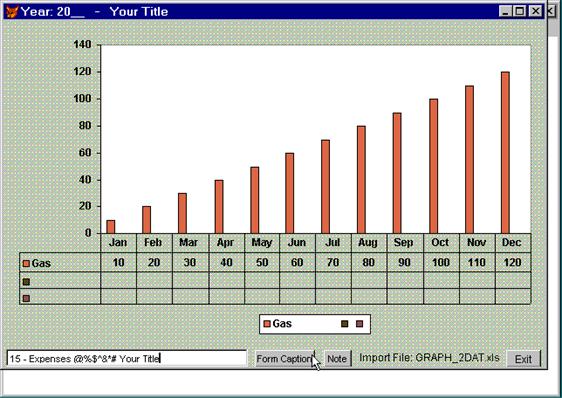

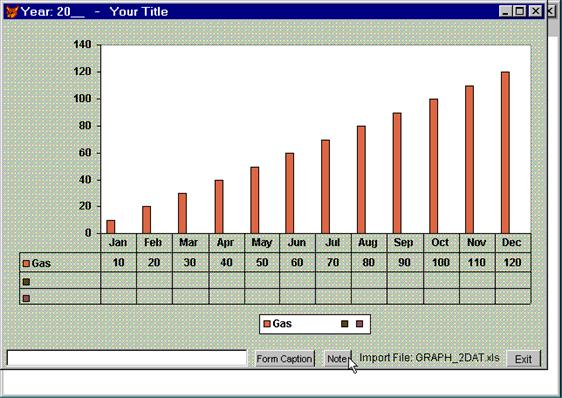

Menu – Graph #2 (Column Type Graph)

Enter the year and title of the graph in the textbox and

click on the Form Caption command button.

Double click on the graph plot area to edit Microsoft Graph.

Select Edit from the menú bar.

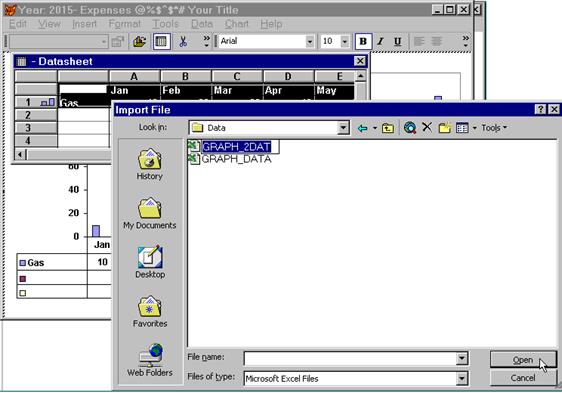

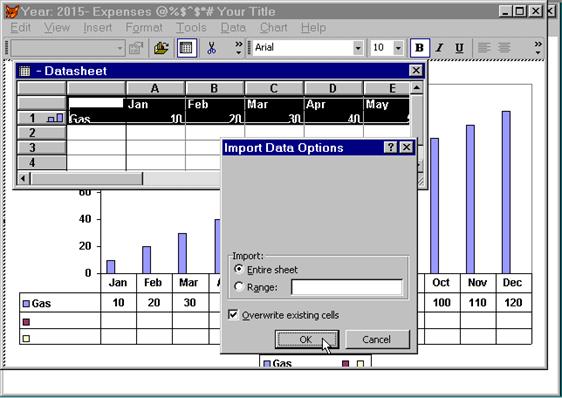

Select Import File from the menu.

Select the Excel file C:\pfinance\data\GRAPH_2DAT.xls

Click on the Open command button.

Click on the OK command button.

See note on page 105 to Edit and Copy, if it is desired.

Close the Excel window by doing a click as shown below.

Click on the bottom of the form.

To close the form, do a click as shown below.

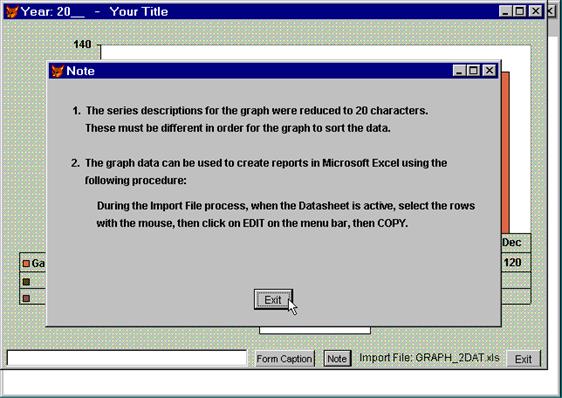

Click on the Note command button.

Procedure to copy the data from the graph:

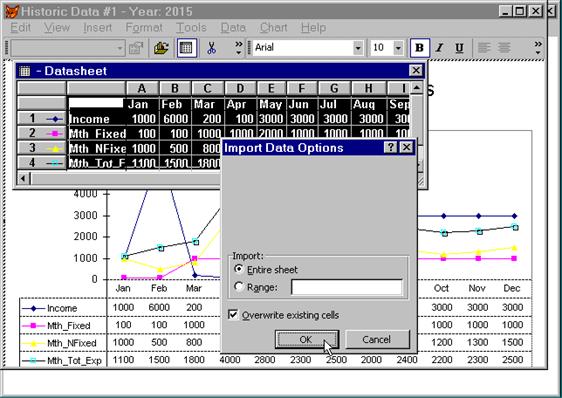

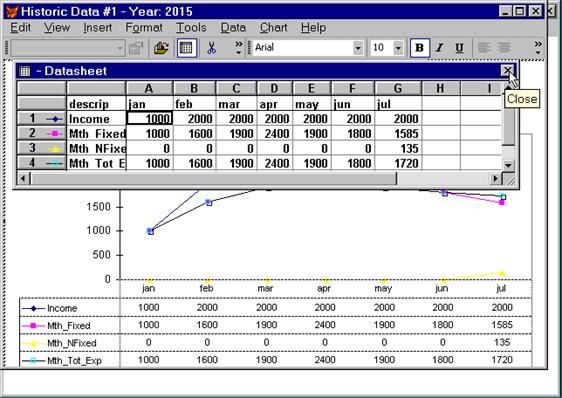

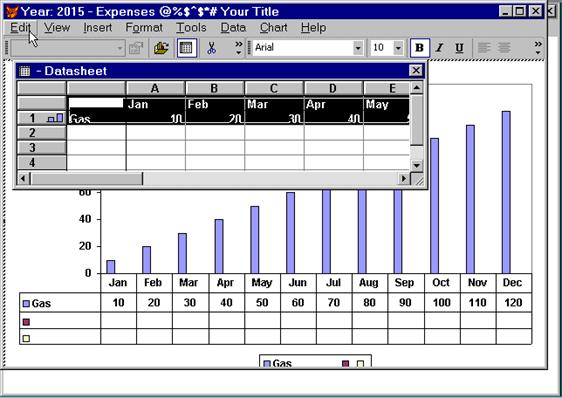

1.) During the Import File process, when the Datasheet is active, select

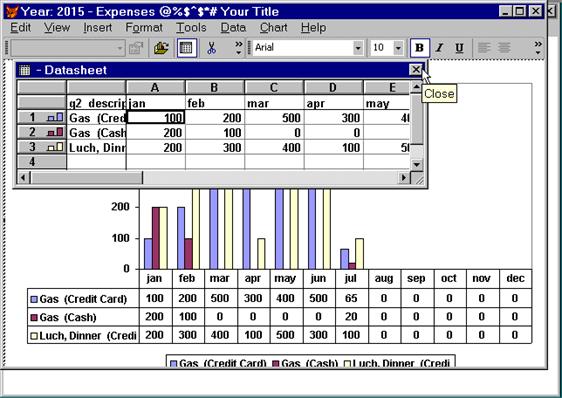

the rows with the mouse, then click on Edit and Copy. See pages 103, 106.

Before doing EDIT / COPY, it may be necessary to enlarge the screen

and the Excel window. Click on the Note push button to see updated note.

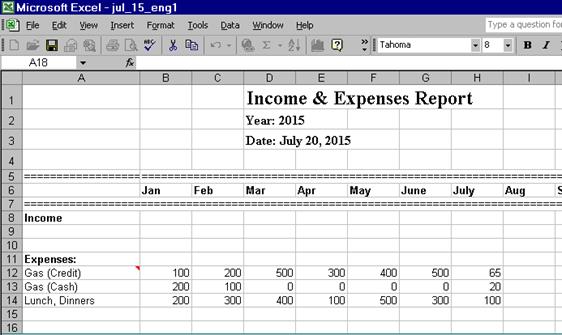

Procedure to import the data from the graph to Microsoft Excel:

1.) Start Excel

2.) Place the cursor on the desired location.

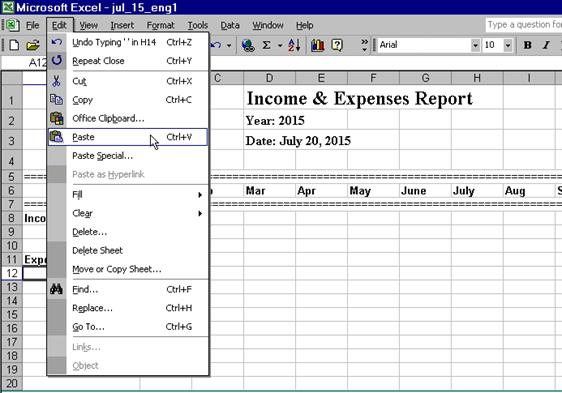

3.) Select Edit from the menu bar, then Paste.

(See note on page 105.)

Procedure to add totals in rows and columns:

1.) Place the cursor on the desired location.

2.) Select Formulas from the menu bar and Auto Sum.

3.) Select the option Sum.

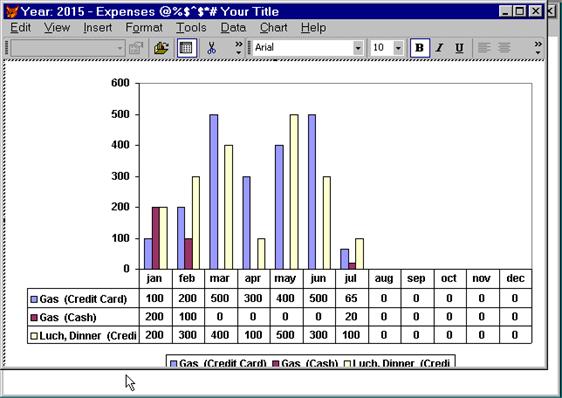

Procedure to create a graph with six series:

Before doing Edit / Import File, see page 102, create and save an

Excel file with the data for the graph with six series, see example below.

Then use this file for Import File.

Procedure to copy the entire chart from the graph to Microsoft Excel:

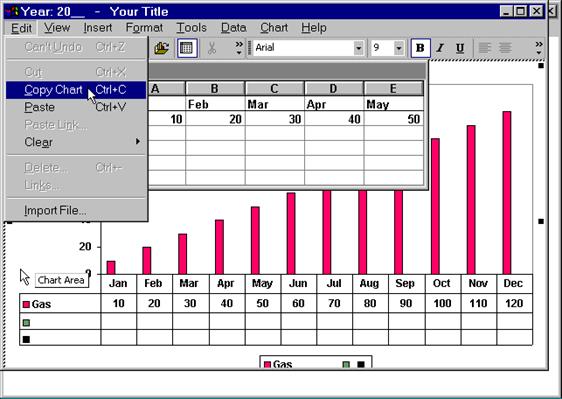

1.) When the Datasheet is active, see page 101, select the chart

by doing a click on the Chart Area, instead of the Datasheet.

2.) Select Edit from the menu bar and Copy Chart.

3.) Start Excel and do Edit / Paste.
